Byrd Tool Experts

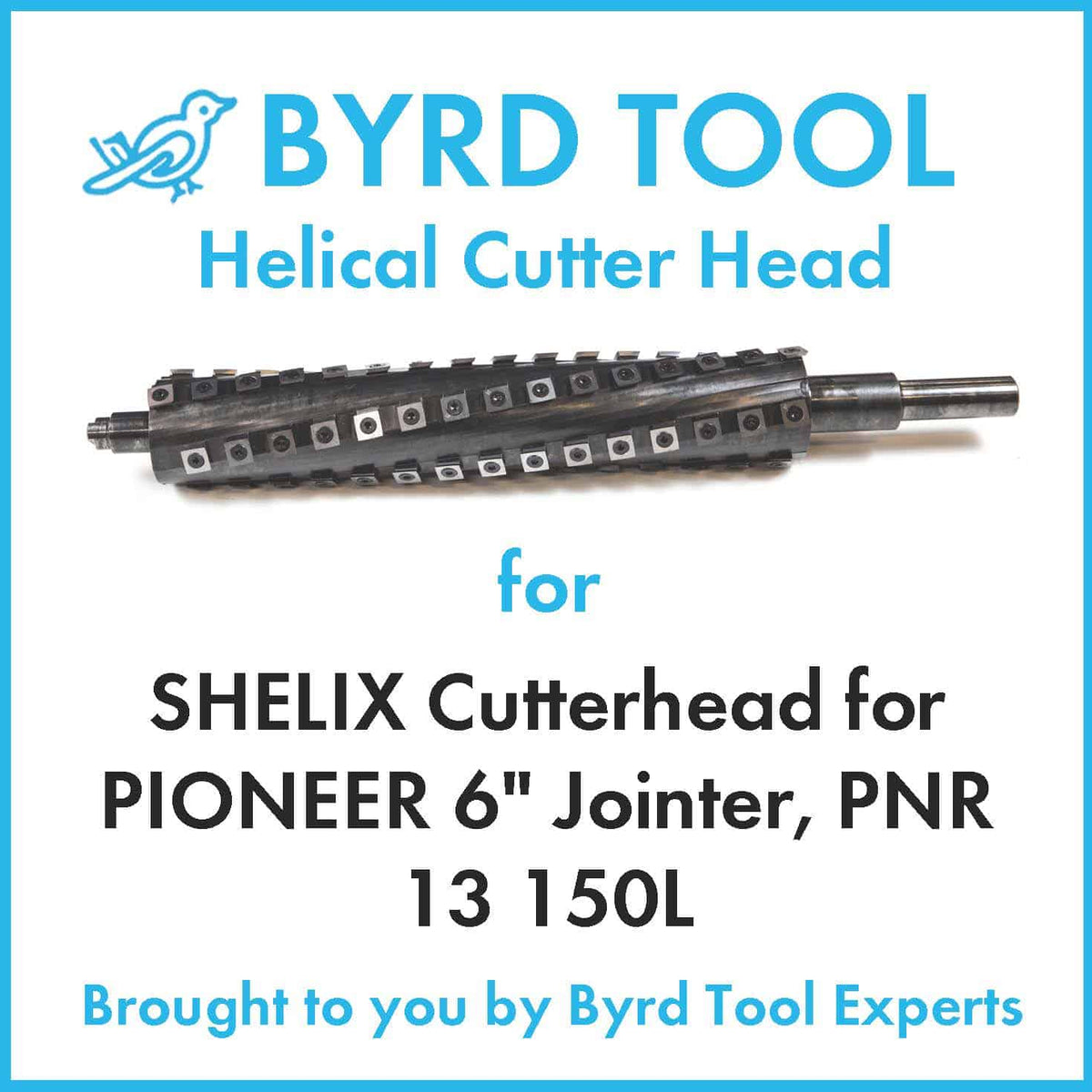

SHELIX Cutterhead for PIONEER 6" Jointer, PNR 13 150L
$525.00
MADE IN AMERICA
Standard lead time to ship once your order is placed averages 4 to 6 months but can be shorter depending on production demand.
This SHELIX head features 5 wings of knives with a total of 30 knives for installation in the PIONEER 6″ Jointer, PNR 13 150L. All Shelix orders include at no charge: Five replacement KN400 carbide inserts, One 1/4” Drive Handle, One T25 Torx Plus Bit.
NOTE! – We offer two different models of the this head: The G6 model and the G-6/63 model. Please read below to identify the correct model for your application.
Standard lead time to ship once your order is placed averages 4 to 6 months but can be shorter depending on production demand.
CRITICAL TO ORDERING CORRECTLY: Deciding between the G6 Size or the G-6/63 head options:
The manufacturer of your machine has changed the design of the cutter head over the years, and depending on its age your machine will require either a G6 or a G-6/63 model head. BYRD TOOL EXPERTS IS NOT RESPONSIBLE FOR HEADS THAT ARE ORDERED INCORRECTLY, AND REQUIRES A 25% RESTOCKING FEE TO REPLACE AN INCORRECTLY ORDERED HEAD.
We would hate for you to pay a restocking fee - here is how to correctly measure your head so you order the correct part.
Older models use a 2.625" cutting circle and newer models use a 63mm (2.480") cutting circle (Cutting circle = diameter of cutter head including knives). To determine what cutting circle your cutter head uses, please do the following:
- STEP One: Wrap a piece of paper around the cutter head so that it is just touching the knives (keep as true a circle as possible). Put a mark where the edge of the paper wraps around and meets the body of the sheet of paper.
-
STEP Two: Measure the distance between the mark and the end of your paper.
-
- If your measurement is 8" to 8 1/4" long then your cutting circle is 2.625" in diameter: Order the G6 Model Head.
- If your measurement is 7 7/8" or less, then your cutting circle is 63mm (2.480") in diameter: Order the G-6/63 head.
-
When you place your order, please select from the drop down menu above to order the correct model for your application.
For an updated lead time please call us at: (855) 247-4450.
Here is a step by step video showing you how to mark, and measure your head:
